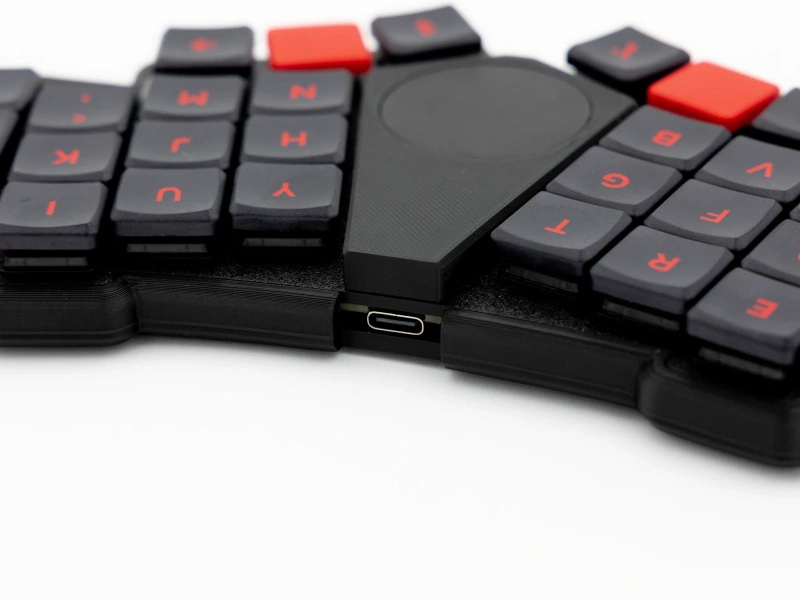

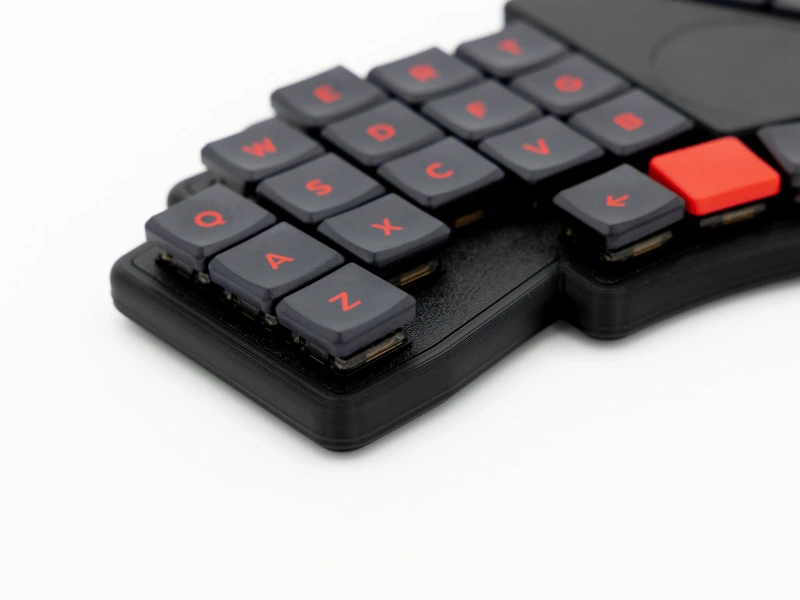

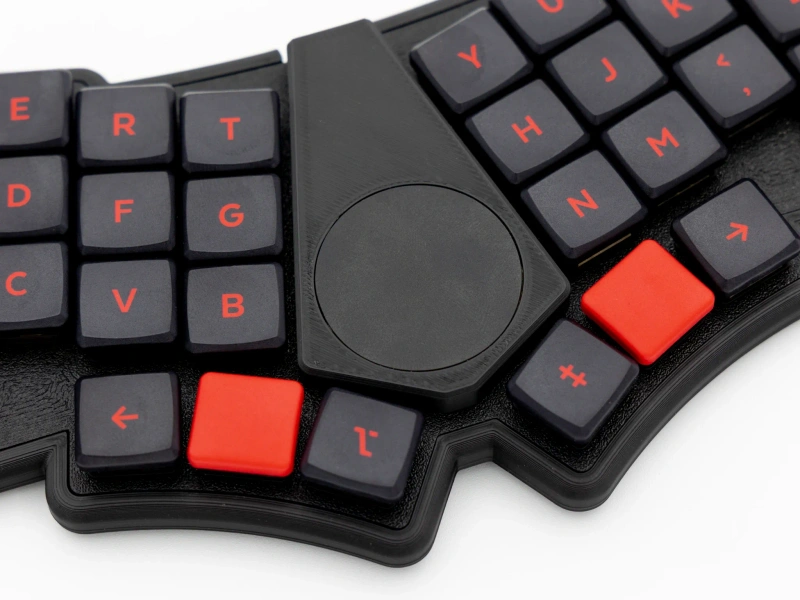

Designed by Hazel’s Garage, Bad Wings V2 is a refined 36-key unibody split keyboard that combines a compact ergonomic layout with a simplified, modern build process. It includes pointer support via the integrated Cirque trackpad.

Improvements over the original include the integration of an onboard STM32 microcontroller, which removes the need for external controllers and shift registers, making assembly faster, cleaner and more accessible.

GitHub

Instructions

PCB Trace View

• Included contents:

• - 1 x PCB with onboard controller (preflashed with VIAL)

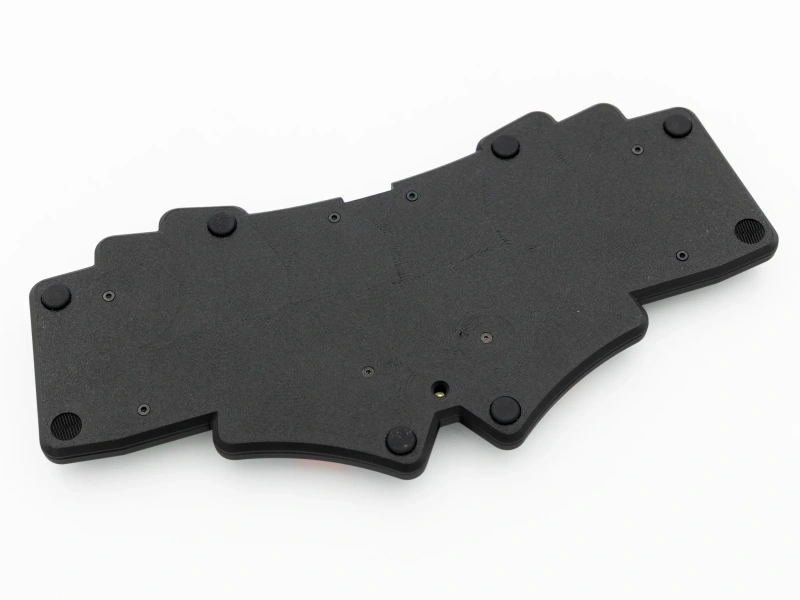

• - 1 x 3D printed bottom case

• - 1 x 3D printed switch plate

• - 1 x Cirque trackpad assembly

• - 1 x Trackpad cable

• - 40 x Hotswap Sockets

• - 6 x M2x8 screws

• - 2 x M2x12 screws

• - 8 x Round Silicone Rubber Feet

• Not included:

• - 36 x Keycaps and switches

• Firmware:

• VIAL
