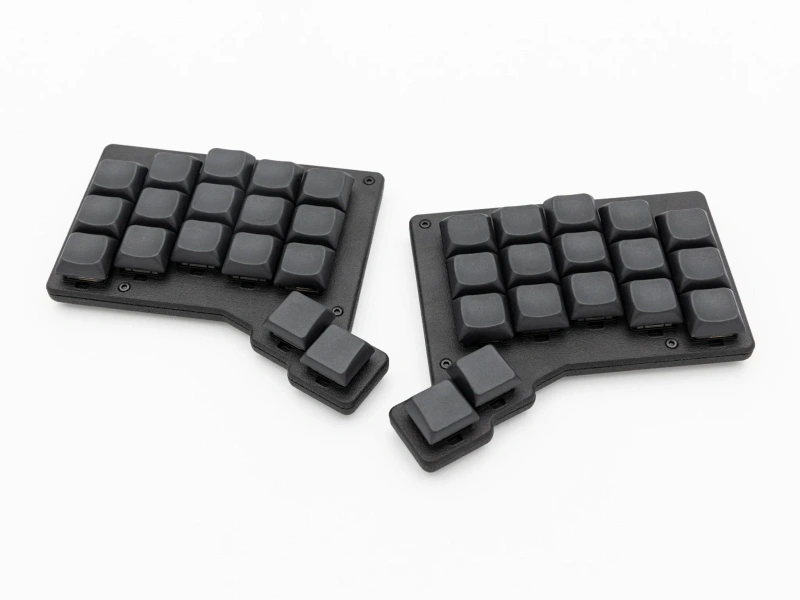

The Forager, designed by Carrefinho, is a Voyager-inspired, 34-key, low-profile, split keyboard designed for minimalists who want a powerful, wireless workflow with the smallest possible footprint. It condenses the iconic ZSA Voyager layout into a tighter, more streamlined format by dropping the outer pinky column and number row to create a focused, efficient arrangement.

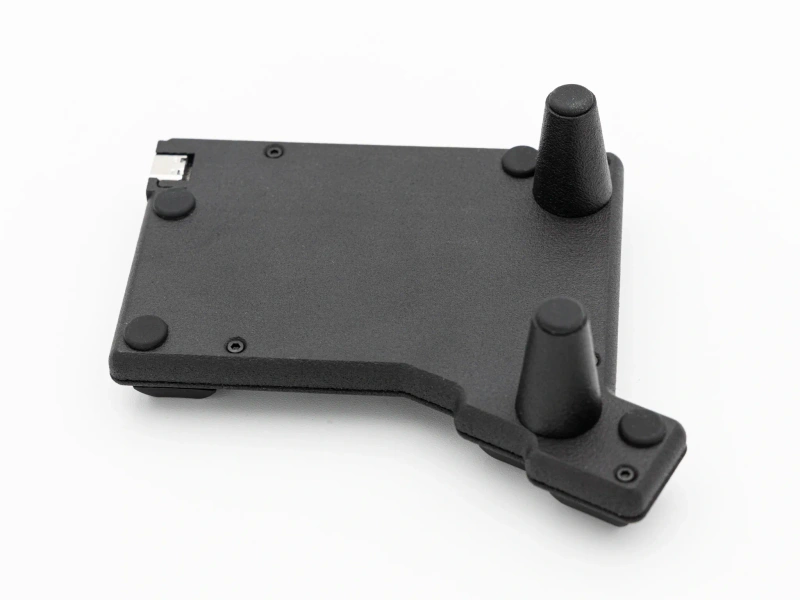

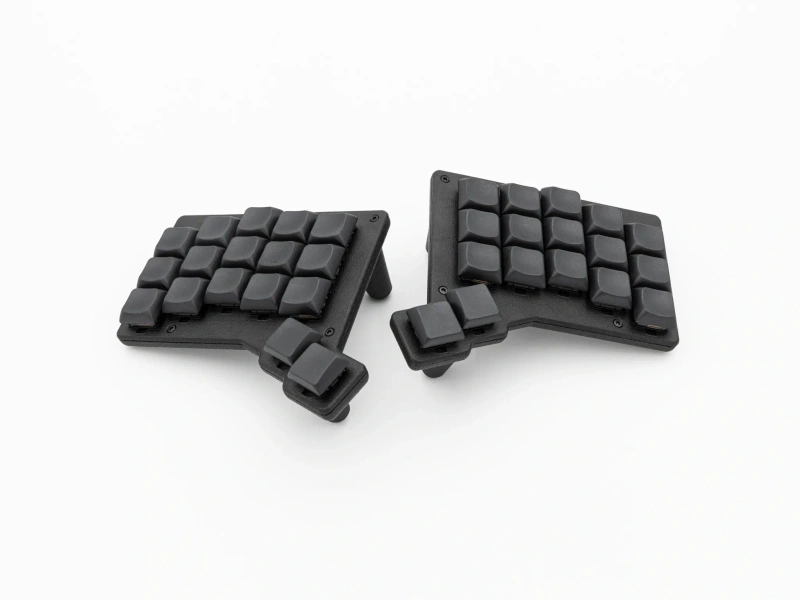

Magnetic tenting legs are available as an optional add-on. These give your Forager a comfortable, angled typing experience.

GitHub

Instructions

PCB Trace View

• Included contents kit:

• - 2 x PCBs (Diodes and standoffs presoldered)

• - 2 x XIAO nRF52840 (Preflashed)

• - 4 x 3D printed case parts in MJF (Magnets and lightpipe preinstalled)

• - 34 x Choc hotswap sockets

• - 18 x Screws

• - 8 x Silicone Rubber Feet

• Included contents tenting legs:

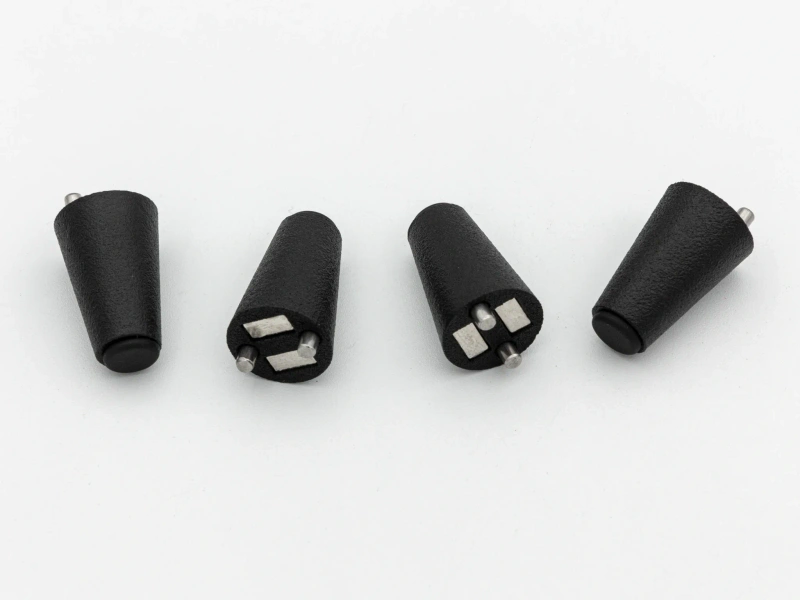

• - 4 x Tenting legs (Magnets, pins and feet preinstalled)

• Not included:

• - 34 x Keycaps and switches

• - 2 x 401230 LiPo batteries like this one

• Firmware:

• - ZMK (source)
