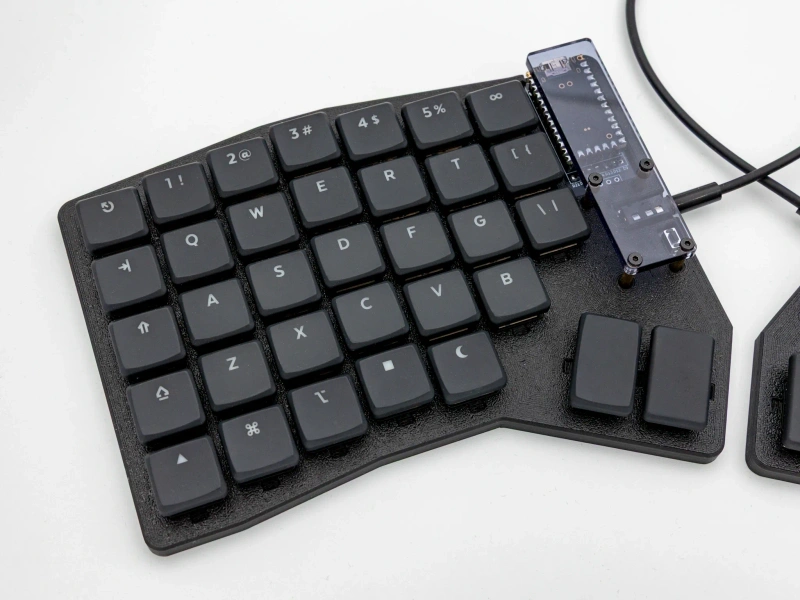

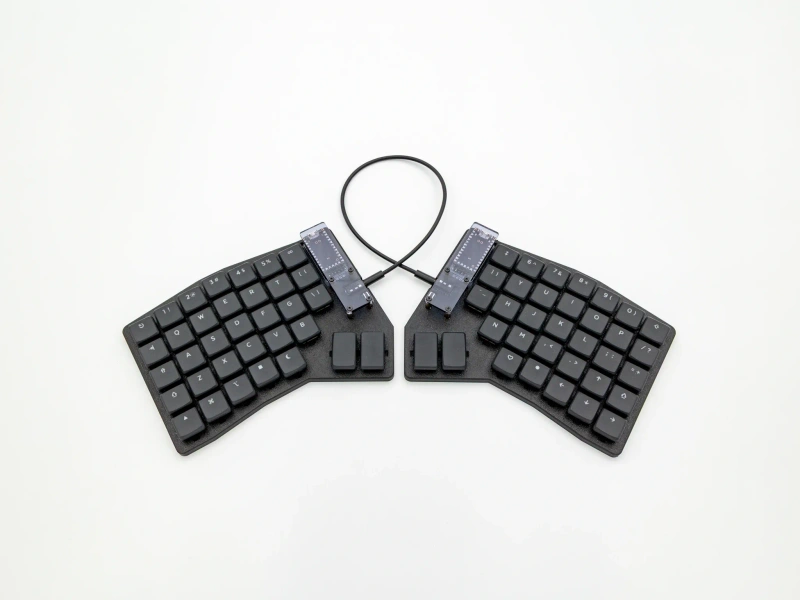

The Nomad is your perfect split keyboard with many keys. Designed by fiendie, it features a sleek, minimalist design with 68 low-profile, column-staggered keys in a split 7×5 layout. It uses a classic TRRS connection between the two halves and supports Kailh Choc v1 switches with hotswap sockets, making the keyboard both portable and easy to assemble. It's simple, clean, and travel-ready.

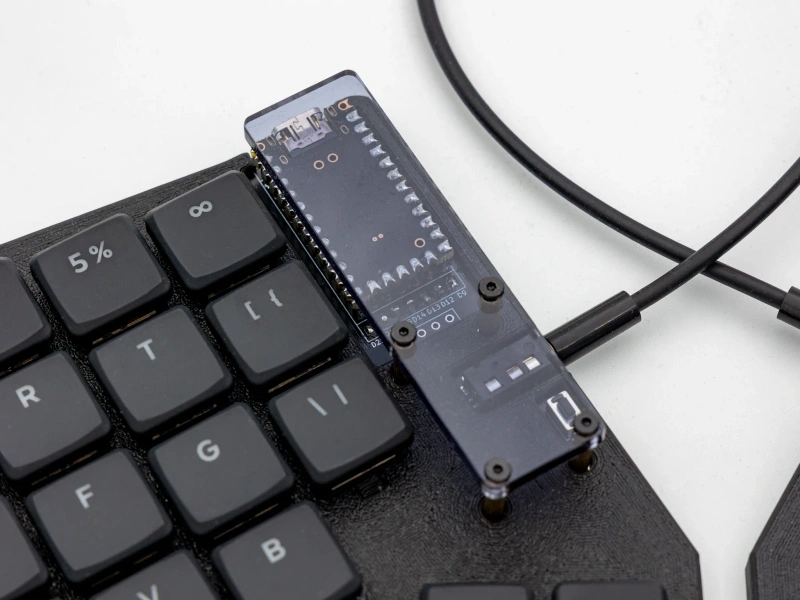

It uses ProMicro compatible controllers like the 0xCB Helios!

GitHub

Instructions

PCB Trace View

• Included contents:

• - 2 x PCBs

• - 1 x FDM printed case pair

• - 2 x acrylic covers

• - 8 x standoffs

• - 16 x screws

• - 8 x rubber feet

• - 1 x TRRS cable

• - 2 x TRRS jacks

• - 2 x reset buttons

• - 70 x SMD diodes

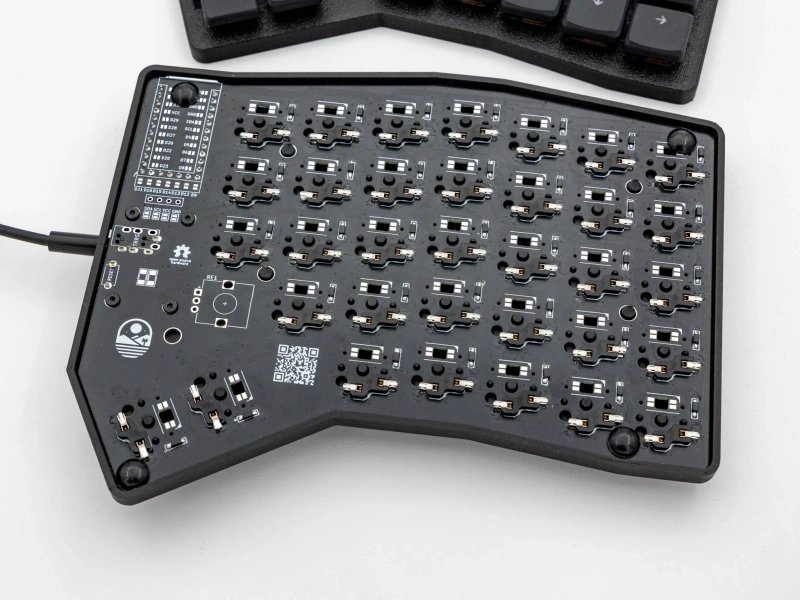

• - 70 x Kailh Choc hotswap sockets

• Not included:

• - 2 x ProMicro compatible controllers

• - mounting for microcontrollers (Solder pins or IC-Sockets and MillMax pins)

• - 68 x keycaps and switches

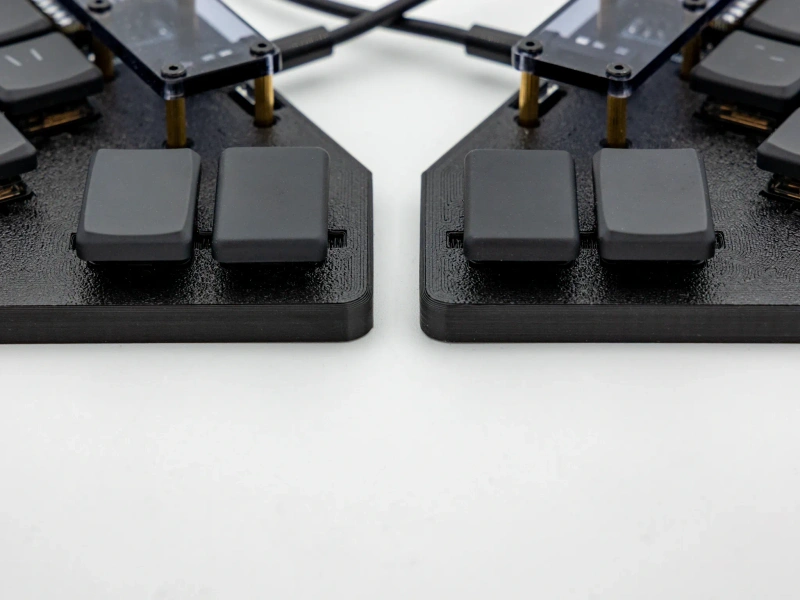

  When using 1.5U LDSA Thumb keys you need to order horizontal ones instead of the vertical ones. The switches in the thumb cluster are rotated 90 degress.

• Firmware:

• VIAL
