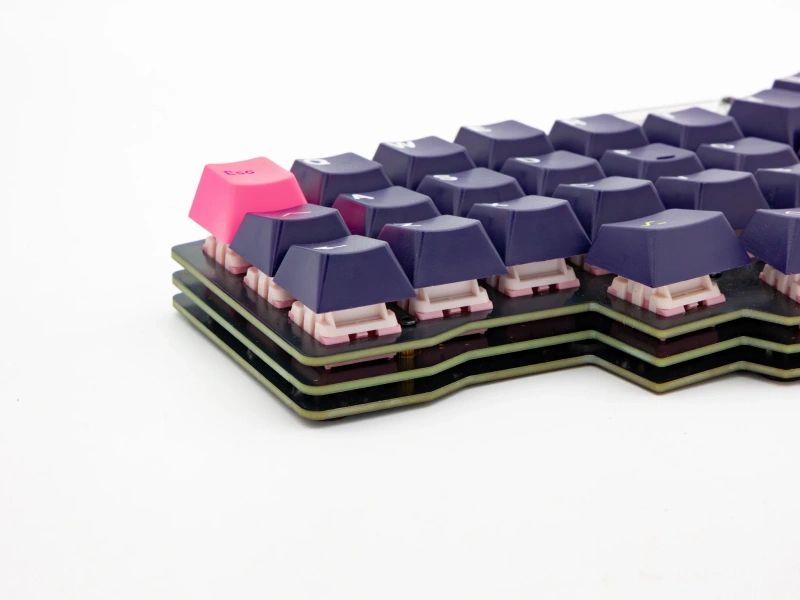

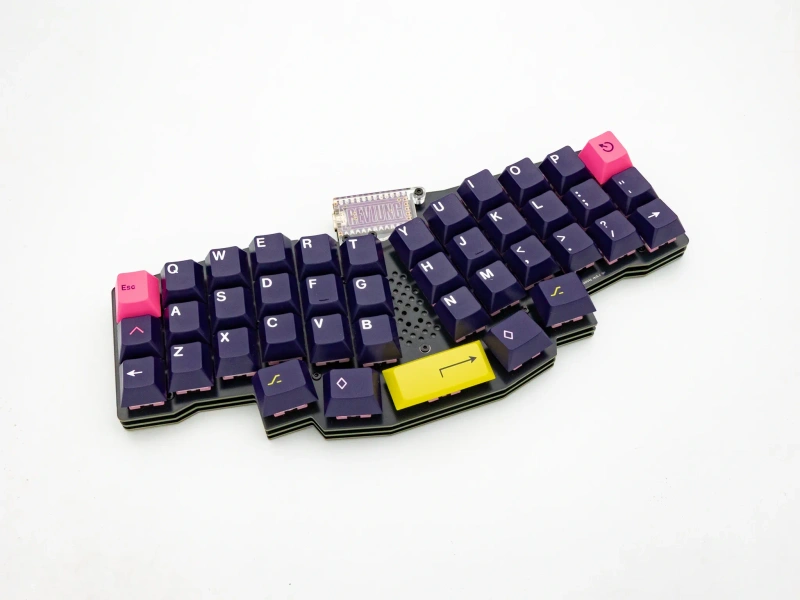

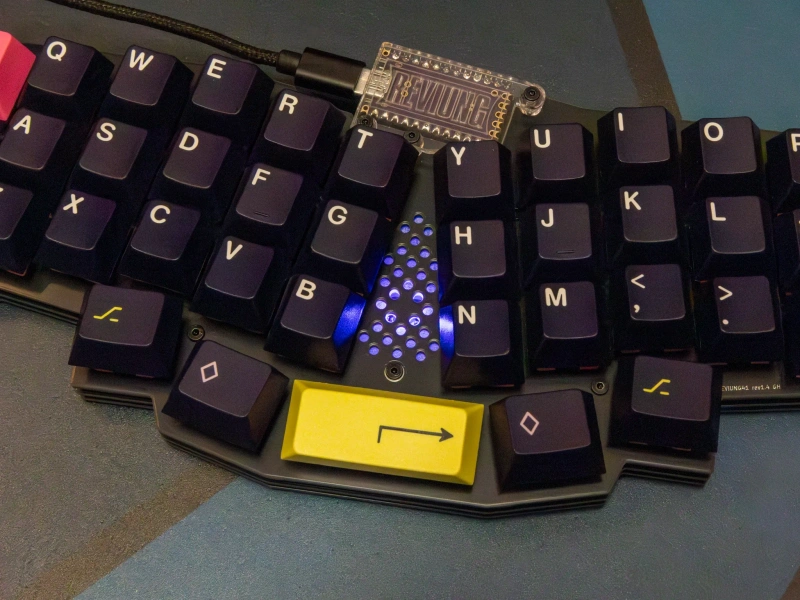

The REVIUNG41 is a 41-key, column-staggered, unibody split keyboard designed by gtips. It supports MX switches and features RGB lighting with a central diffused RGB LED, as well as an elegant underglow.

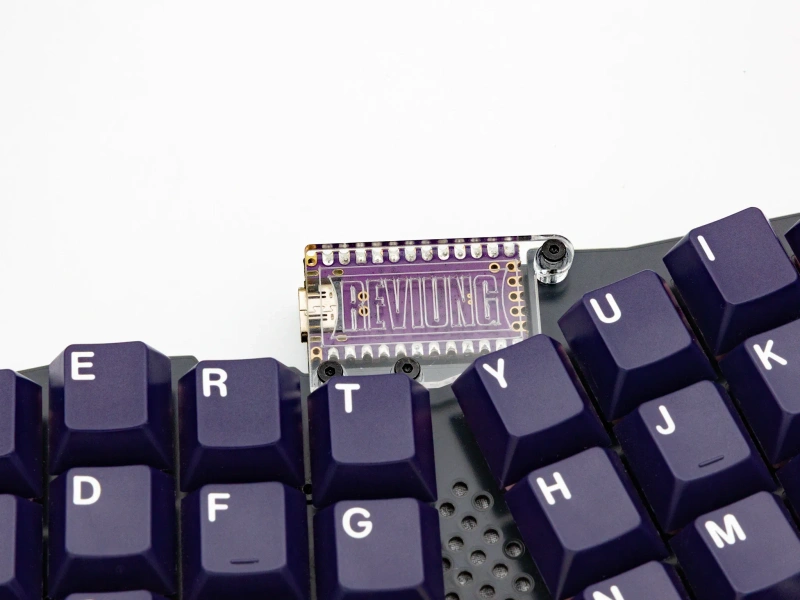

It is compatible with ProMicro compatible controllers like the 0xCB Helios for wired builds or the nice!nano for wireless builds!

GitHub

Instructions (in Japanese, but Google Translate will make it easy to understand)

PCB Trace View

• Included contents:

• - 1 x PCB

• - 1 x FR4 Switch Plate

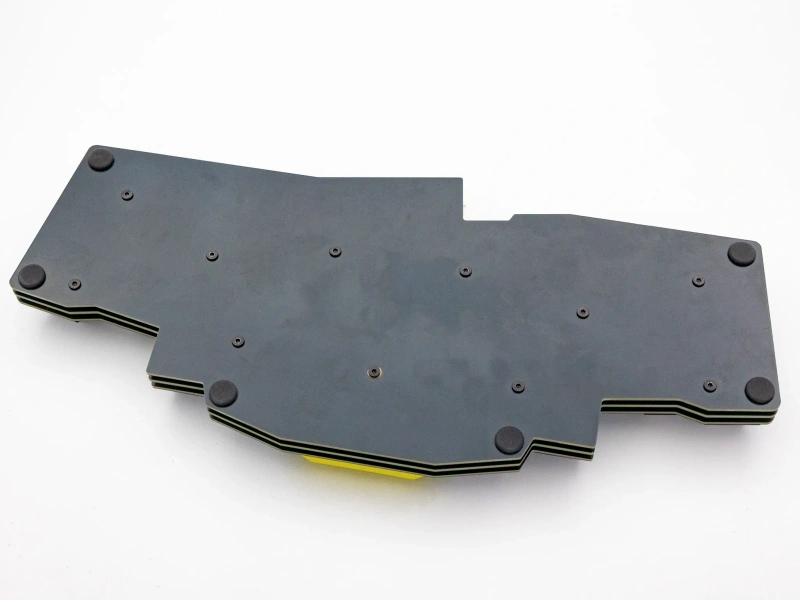

• - 1 x FR4 Bottom Plate

• - 1 x Acrylic LED Diffusor

• - 1 x Acrylic Controller Cover

• - 3 x Acrylic Standoffs

• - 23 x M2x4 Screws

• - 11 x M2x8 Standoffs

• - 3 x M2x10 Screws

• - 3 x M2 Nuts

• - 45 x SMD Diodes

• - 12 x RGB LEDs

• - 42 x Kailh MX hotswap sockets

• - 6 x Round Silicone Rubber Feet

• Not included:

• - 1 x ProMicro compatible controller

• - Mounting for controller (1 x IC-Sockets and 1 x MillMax Pins (normal solder headers won’t fit))

• - 41 x Keycaps and switches

• Firmware:

• VIAL
