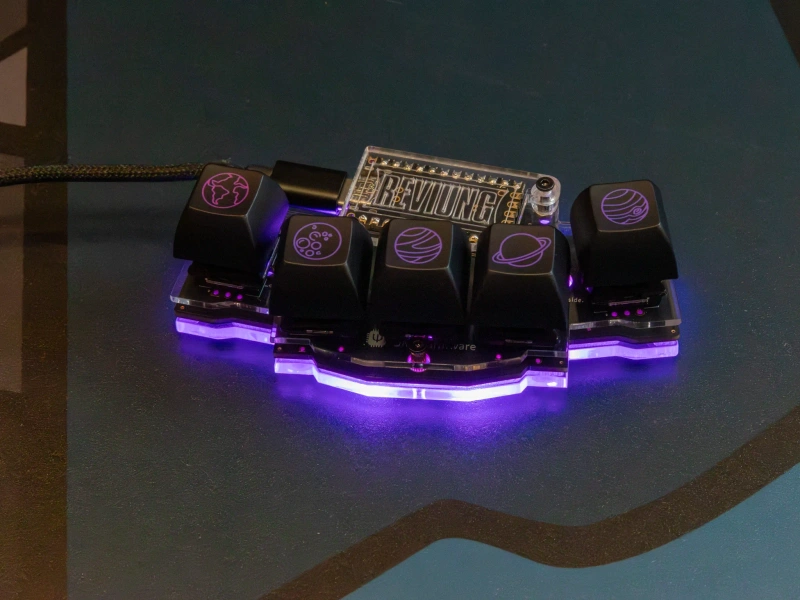

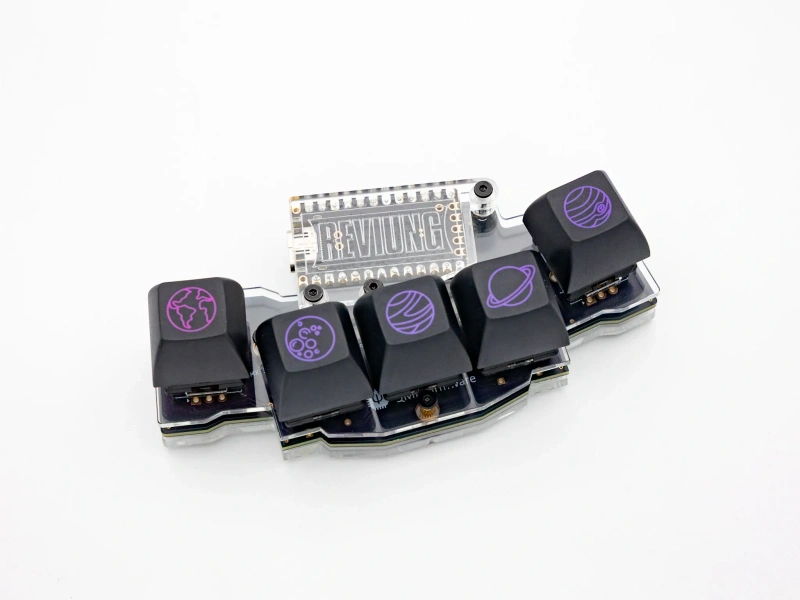

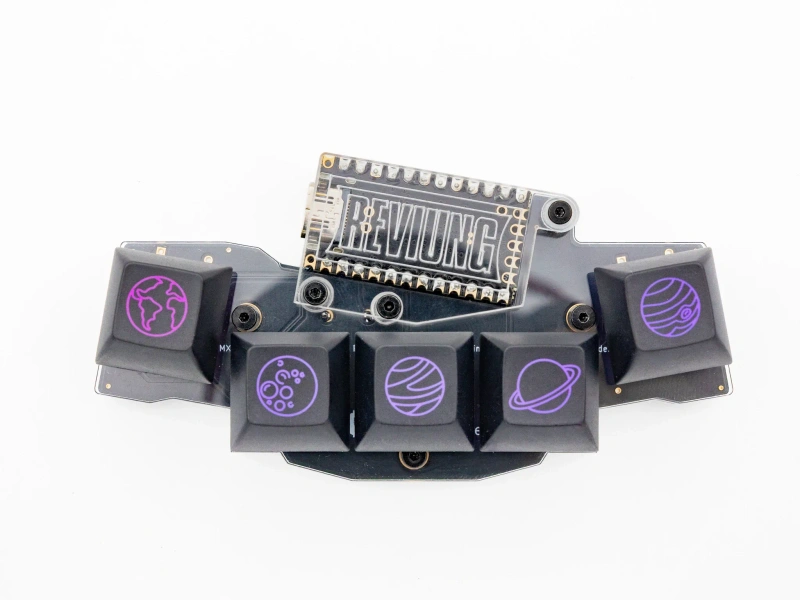

The REVIUNG5 is a 5-key macropad designed by gtips. It supports MX switches and features stunning RGB lighting, which is diffused by the engraved acrylic case. You can optionally mount an encoder on either side.

It is compatible with ProMicro compatible controllers like the 0xCB Helios for wired builds or the nice!nano for wireless builds!

GitHub

Instructions (in Japanese, but Google Translate will make it easy to understand)

PCB Trace View

• Included contents:

• - 1 x PCB

• - 1 x Acrylic Switch Plate

• - 1 x Acrilic Bottom Plate

• - 1 x Acrylic Controller Cover

• - 3 x Acrylic Standoffs

• - 7 x M2x4 Screws

• - 3 x M2x8 Standoffs

• - 3 x M2x10 Screws

• - 3 x M2 Nuts

• - 10 x SMD Diodes

• - 4 x RGB LEDs

• - 1 x Reset Button

• - 4 x Clear Rubber Feet

• Not included:

• - 1 x ProMicro compatible controller

• - Mounting for controller (1 x IC-Sockets and 1 x MillMax Pins (normal solder headers won’t fit))

• - 5 x Keycaps and switches

• Firmware:

• VIAL
