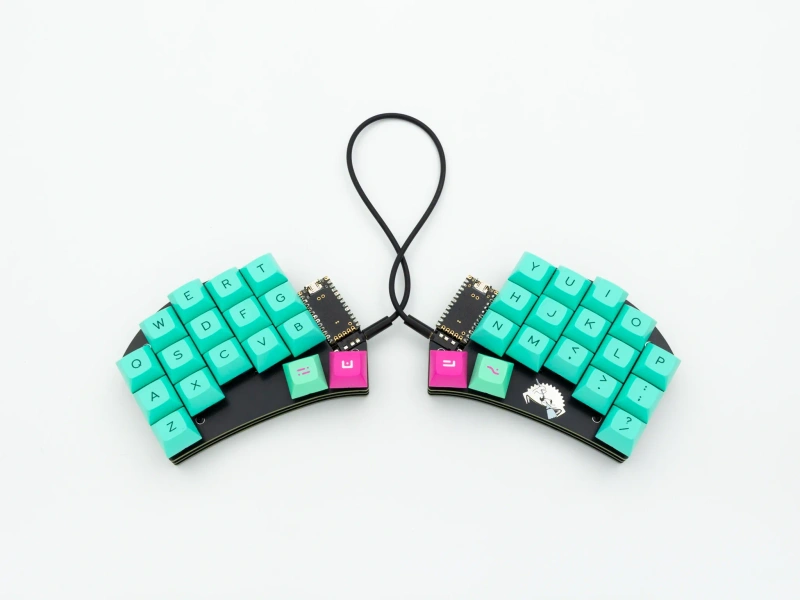

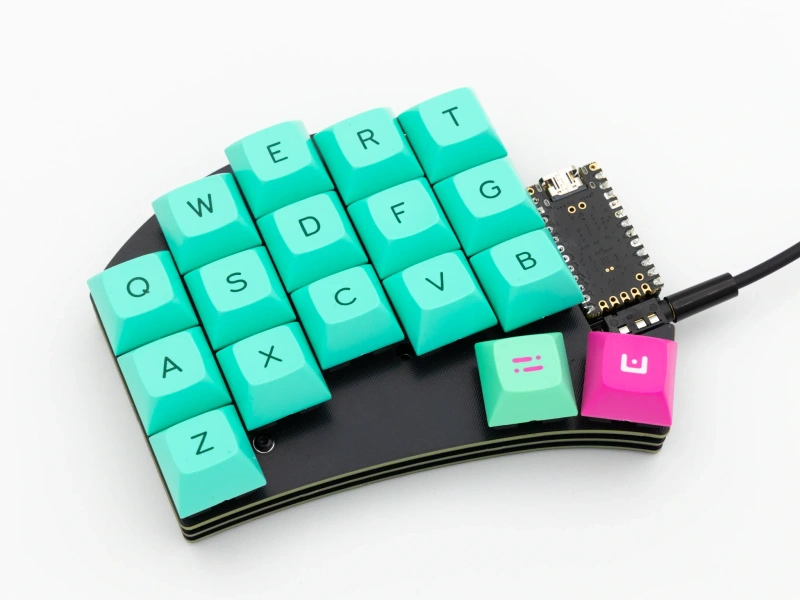

The Sweep Bling MX is a beginner-friendly 34-key MX-compatible split keyboard designed by David Barr. Its clever diodeless design means minimal soldering, making it an ideal first build. It supports both wired and wireless setups, so you can build it your way—simple, clean, and stylish.

It is compatible with ProMicro compatible controllers like the 0xCB Helios for wired builds or the nice!nano for wireless builds!

GitHub

Instructions

PCB Trace View

• Included contents base kit:

• - 2 x PCBs

• - 2 x Switch Plates

• - 2 x Bottom Plates

• - 16 x Screws

• - 8 x Standoffs

• - 8 x Round Silicone Rubber Feet

• - 2 x Reset buttons

• - 35 x Kailh MX hotswap sockets

• Depending on the version, there will be additional parts included in the kit:

• Included contents wired kit:

• - 2 x TRRS jacks

• - 1 x TRRS cable

• Included contents wireless kit:

• - 2 x SMD slide switch

• Not included:

• - 2 x ProMicro compatible controllers (depending on the kit a wired or wireless model)

• - mounting for controllers (2 x Solder Pins or 2 x IC-Sockets and 2 x MillMax Pins)

• - 34 x keycaps and switches

• - 2 x 301225 LiPo battery like this one for the wireless kit

• Firmware:

• VIAL
